Backshell Electrical Connector: A Complete Guide to Functions, Types, and Applications

-

 In modern electrical and electronic systems, reliable connectivity is essential for performance, safety, and long-term durability. One critical yet often overlooked component that ensures dependable connections is the backshell electrical connector. Whether used in aerospace systems, telecommunications infrastructure, industrial machinery, or military equipment, backshells play a key role in protecting and stabilizing electrical connections.

This article provides a comprehensive overview of backshell electrical connectors, including their functions, types, benefits, applications, and key considerations when selecting them.

What Is a Backshell Electrical Connector?


A backshell electrical connector is an accessory component attached to the rear side of an electrical connector. Its primary purpose is to protect the interface between the cable and the connector while managing cable routing and environmental protection.

Backshells are commonly used in circular connectors, RF connectors, and multi-pin industrial connectors, where cables terminate into connector contacts. By enclosing and securing the cable entry point, the backshell enhances mechanical stability and prevents strain on electrical contacts.

In many high-reliability systems such as aerospace or defense electronics backshells are not optional components but essential parts of the connector assembly.

Core Functions of a Backshell Electrical Connector

Backshells are designed to improve connector performance and reliability in demanding environments. Their functions typically include the following:

1. Strain Relief and Mechanical Protection

When cables are connected to electrical systems, they may experience movement, vibration, or bending. Backshells provide strain relief, preventing excessive mechanical stress from reaching the connector pins or solder joints.

This mechanical support significantly reduces the risk of connection failures caused by vibration or repeated cable movement.

2. Cable Management and Routing

Backshells guide cables and wires exiting the connector in a controlled direction. Many models offer different cable exit angles, such as 90° or 180°, allowing engineers to optimize cable routing within tight equipment spaces.

This helps maintain organized wiring harnesses and reduces cable fatigue.

3. Environmental Sealing

Certain backshell designs provide sealing capabilities that protect connections from:

  • Moisture

  • Dust

  • Chemicals

  • Extreme temperatures

Sealed backshells can achieve protection ratings such as IP67 or IP69K, enabling connectors to operate reliably in harsh environments.

4. Electromagnetic Interference (EMI) Shielding

Electrical systems often operate in environments with high electromagnetic activity. Conductive backshells help maintain shield continuity, reducing electromagnetic interference (EMI) and radio frequency interference (RFI).

This function is particularly important for:

  • Aerospace avionics

  • Telecommunications equipment

  • Defense communication systems

5. Cable Shield Termination

Backshells also provide a secure termination point for cable shielding, ensuring that signals remain stable and protected from external interference.

Types of Backshell Electrical Connectors


Backshell connectors are available in multiple configurations depending on application requirements.

Straight Backshells (180°)

Straight backshells allow cables to exit directly from the connector. They are commonly used when space constraints are minimal and cable routing is straightforward.

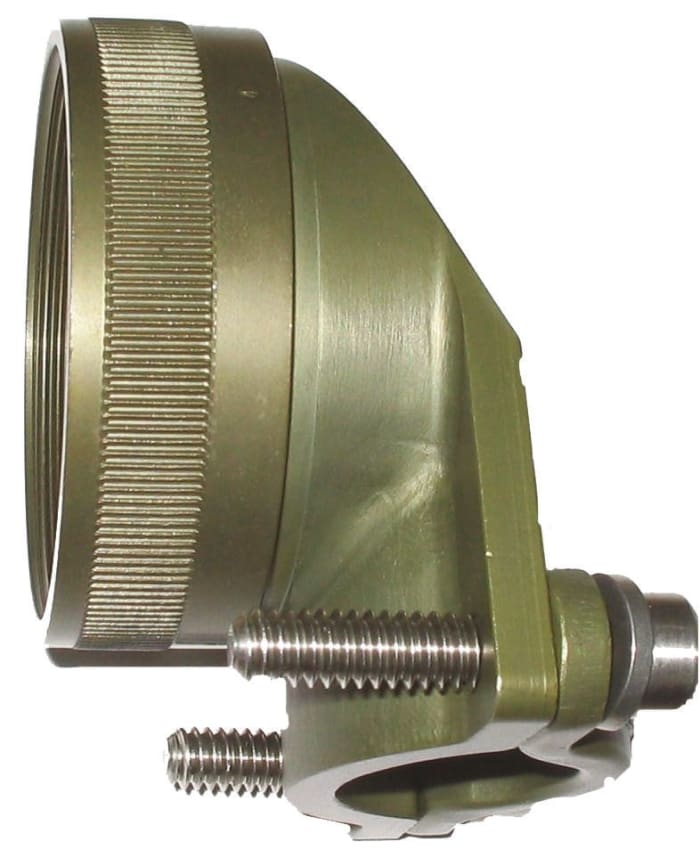

Right-Angle Backshells (90°)

Right-angle backshells redirect cables at a 90-degree angle, making them ideal for installations where space is limited or cables must be routed along surfaces.

EMI/RFI Shielded Backshells

These backshells include conductive materials or braid clamps that maintain electrical shielding across the connector assembly.

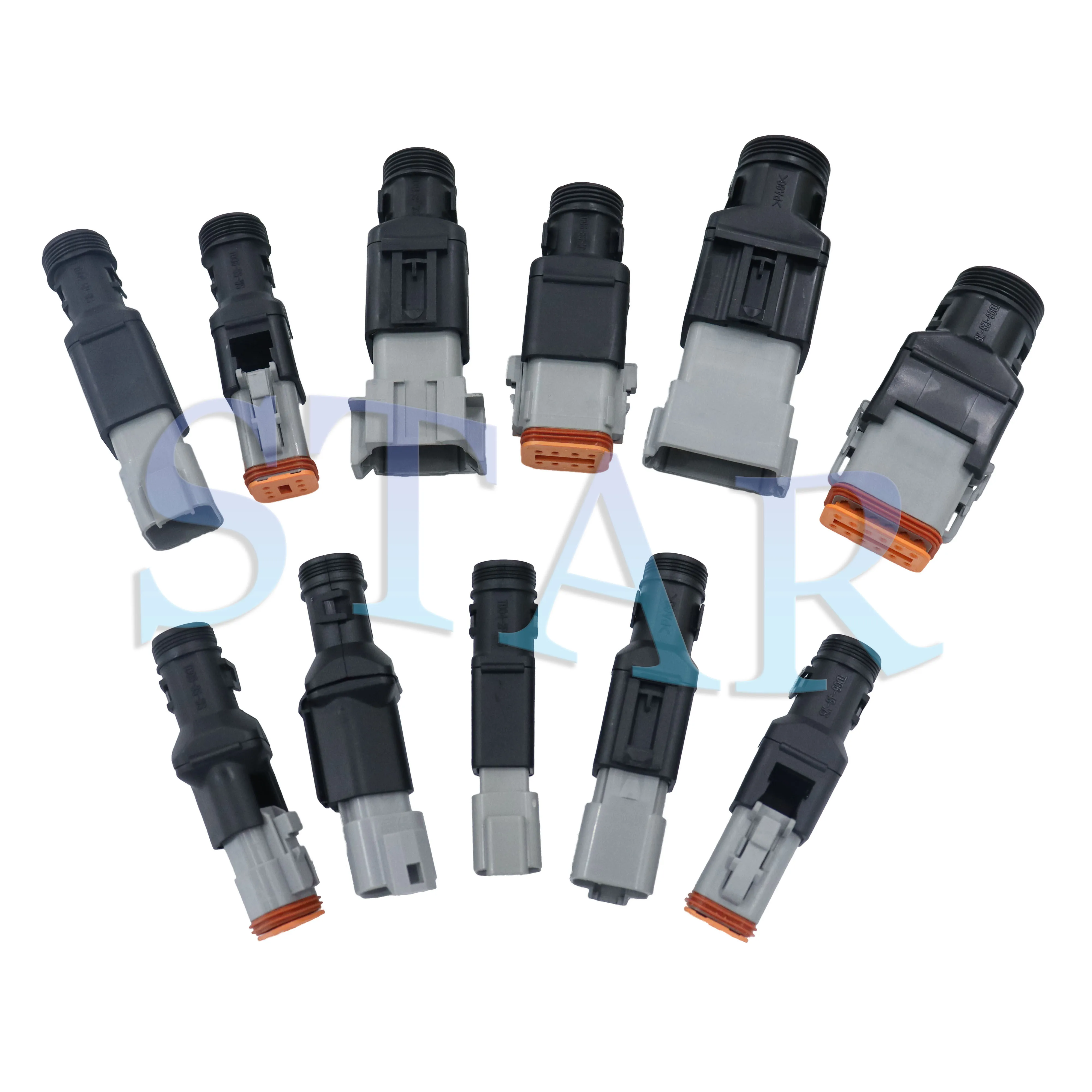

Environmental or Sealed Backshells

Sealed backshells include gaskets, boots, or heat-shrink interfaces that prevent moisture or contaminants from entering the connector assembly.

Strain Relief Backshells

These backshells are designed primarily to protect cable terminations by controlling cable bend radius and distributing mechanical stress evenly.

Materials Used in Backshell Connectors

Backshells are manufactured from a variety of materials to meet different environmental and mechanical requirements.

Common materials include:

  • Aluminum alloys – Lightweight and corrosion resistant

  • Stainless steel – High strength and durability

  • Marine bronze – Excellent corrosion resistance in marine environments

  • Thermoplastics – Lightweight and cost-effective for industrial use

Material selection depends on factors such as environmental exposure, weight limitations, and electrical shielding requirements.

Applications of Backshell Electrical Connectors

Backshell connectors are widely used across industries that demand reliable electrical connectivity.

Aerospace and Defense

Aircraft and military communication systems rely heavily on backshells to maintain connection stability under vibration, temperature extremes, and electromagnetic exposure.

Industrial Automation

Manufacturing equipment and robotics require secure connectors that withstand continuous motion and mechanical stress.

Telecommunications

Backshells protect RF and signal connectors in telecommunications equipment, ensuring signal integrity and preventing interference.

Automotive and Transportation

Modern vehicles and heavy-duty machinery use sealed backshells to protect electrical systems from moisture, dirt, and vibration.

Marine Systems

Backshells provide corrosion resistance and sealing capabilities for marine electrical systems exposed to saltwater and humidity.

Key Benefits of Using Backshell Electrical Connectors

Organizations across industries rely on backshells because they offer several operational advantages:

  • Improved connection reliability

  • Enhanced cable protection

  • Reduced maintenance and repair costs

  • Better signal integrity

  • Greater resistance to environmental stress

  • Longer service life of connector assemblies

These benefits make backshell connectors essential in mission-critical systems where failure is not an option.

How to Choose the Right Backshell Connector

Selecting the correct backshell requires careful consideration of several technical factors:

Connector Compatibility

Ensure the backshell is compatible with the connector type, size, and thread standard.

Cable Diameter

Backshell entry size must match the cable diameter to ensure proper strain relief and sealing.

Environmental Requirements

Determine whether the application requires protection against moisture, dust, chemicals, or extreme temperatures.

Shielding Requirements

Applications involving sensitive signals may require EMI/RFI shielding backshells.

Space Constraints

Choose between straight or right-angle backshells depending on available installation space.

Proper selection ensures optimal performance of the entire electrical interconnect system.

Why Backshells Are Essential for Modern Connector Systems

In today’s complex electrical environments, connectors must perform reliably under demanding conditions. Backshell electrical connectors serve as the protective backbone of connector assemblies, ensuring stability, shielding, and durability.

Without backshells, connectors are vulnerable to mechanical stress, environmental damage, and signal interference issues that can lead to system failures and costly downtime.

As industries continue to develop more advanced electronic systems, the importance of high-quality backshell connectors will only continue to grow.

Conclusion

A backshell electrical connector is far more than a simple accessory it is a critical component that ensures the long-term performance and reliability of electrical connections. By providing strain relief, EMI shielding, environmental protection, and cable management, backshells enable electrical systems to operate safely and efficiently in demanding environments.

For engineers, procurement specialists, and maintenance professionals, understanding backshell connector design and selection is essential to building robust and dependable electrical systems.
